Beauty on the outside, Beast on the inside

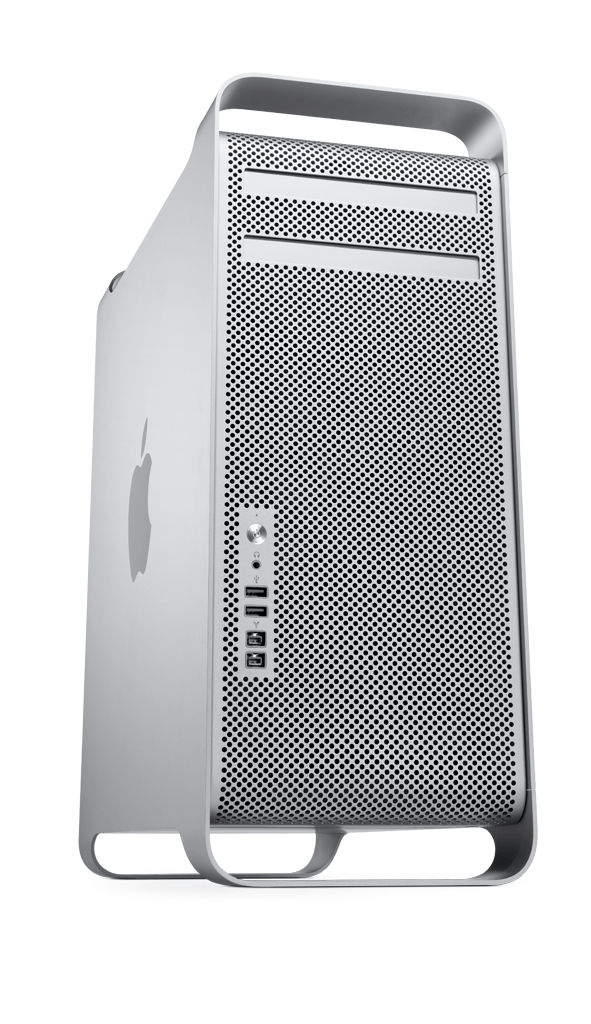

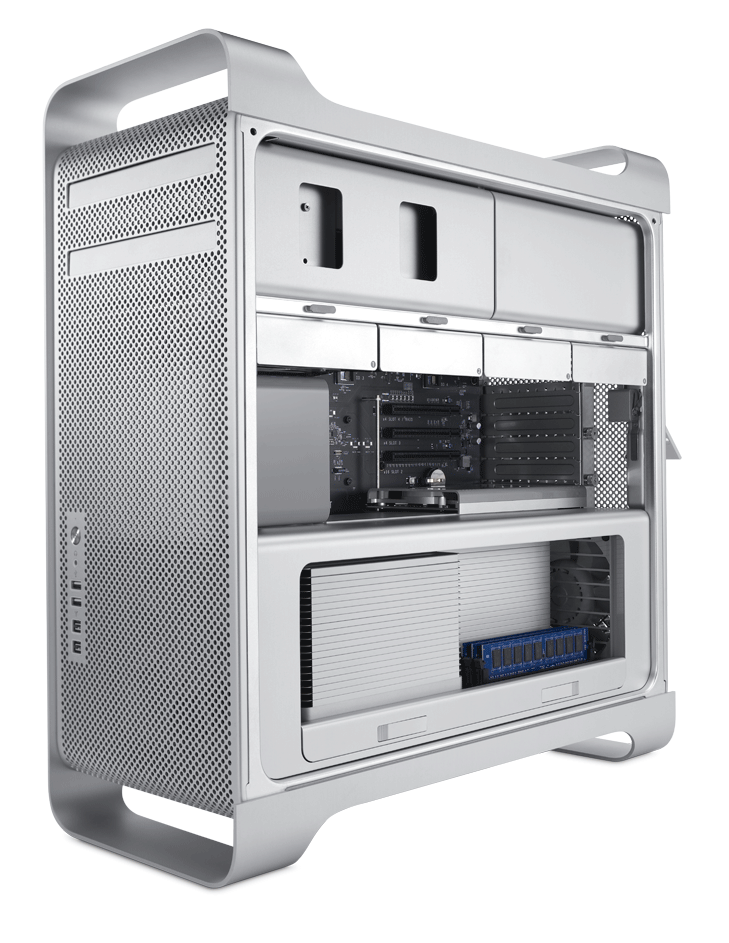

Introducing the all-new Mac Pro. It’s nearly twice as powerful,¹ thanks to the next-generation Quad-Core Intel Xeon “Nehalem” processors and new system architecture. Each processor features an integrated memory controller, three channels of 1066MHz DDR3 ECC memory, 8MB of fully shared L3 cache, and Turbo Boost and Hyper-Threading technologies. The result? The fastest Mac ever. The NVIDIA GeForce GT 120 graphics processor with 512MB of GDDR3 memory provides up to 2.9x the performance of previous Mac Pro standard graphics cards.³ For even more graphics power, the optional ATI Radeon HD 4870 with 512MB of GDDR5 memory is up to 2x faster than the GeForce GT 120.³ With the new Mini DisplayPort and dual-link DVI port, you can connect a 24-inch Apple LED Cinema Display and a 30-inch Apple Cinema HD Display. The entirely redesigned Mac Pro interior makes it even easier to add and remove memory, expansion cards, and hard drives. The Mac Pro also features massive storage and expansion options: up to eight DIMM slots for up to 32GB of memory, four cable-free direct-attach hard drive bays for up to 4TB of storage,² and four PCI Express 2.0 expansion slots. An all-new optional Mac Pro RAID Card brings data protection and increased hard drive performance. Front and rear FireWire 800 and USB 2.0 ports make it easier to connect external devices. It’s the most advanced Mac Pro ever.

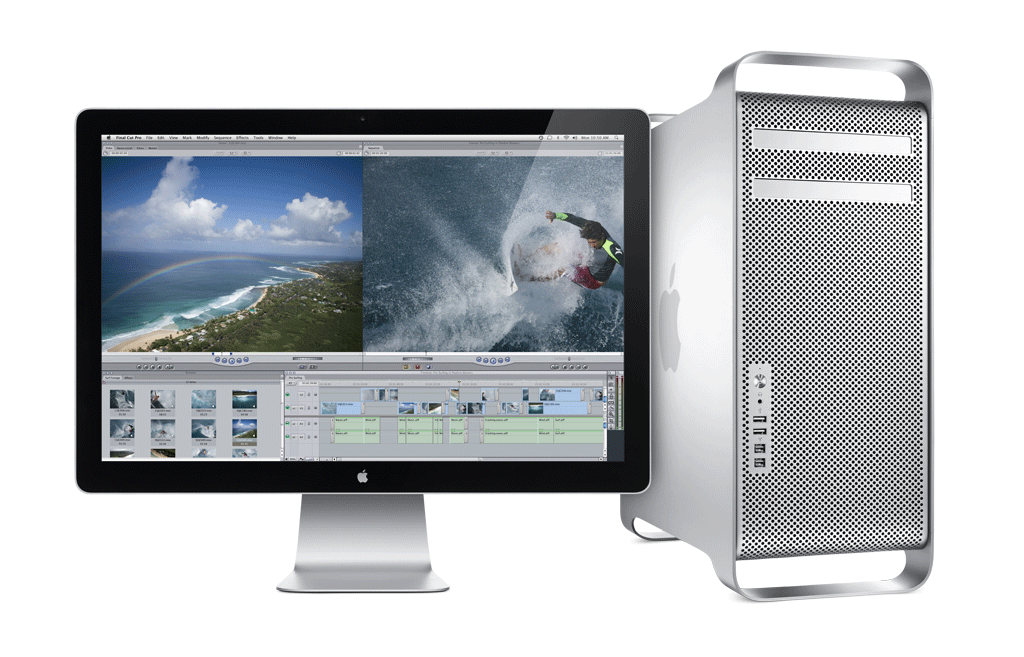

Requires an external monitor.  To complete your Mac Pro workstation, choose a 24-inch Apple LED Cinema Display or 30-inch Apple Cinema HD Display.

Top Features

• 8-core or quad-core processing power with Quad-Core Intel Xeon “Nehalem” processors up to 2.93GHz

• 8MB of fully shared L3 cache per processor

• Integrated memory controller and 1066MHz DDR3 ECC SDRAM, up to 32GB (8GB in quad-core configurations)

• Turbo Boost up to 3.33GHz

• Hyper-Threading for up to 16 virtual cores

• NVIDIA GeForce GT 120 or ATI Radeon HD 4870 graphics and a double-wide PCI Express 2.0 graphics slot

• Up to 4TB of internal storage with up to four Serial ATA 3Gb/s hard drives²

^{• Optional Mac Pro RAID Card providing hardware RAID levels 0, 1, 5, and 0+1}

^{• Three full-length PCI Express 2.0 expansion slots for specialized cards}

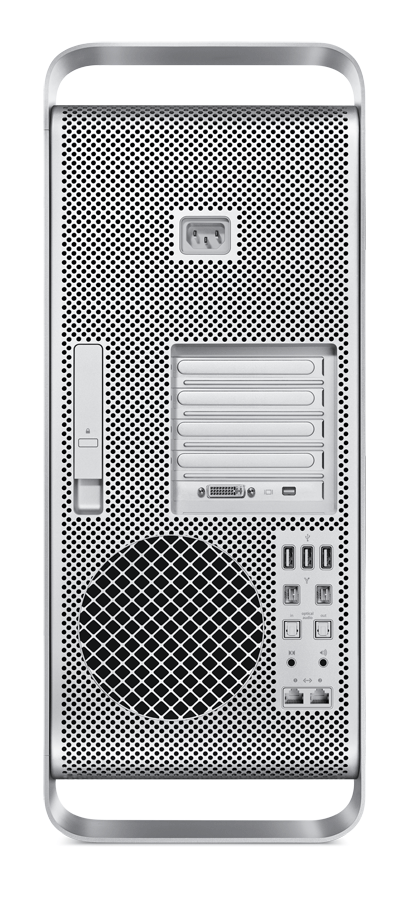

^{• Convenient front and rear I/O and dual Gigabit Ethernet ports for connecting a variety of devices}

^{• Apple Keyboard with Numeric Keypad and Mighty Mouse}

^{• Bluetooth 2.1 + EDR}

• Fully customizable with an innovative enclosure that supports future expansion

 ¹Testing conducted by Apple in February 2009 using preproduction Mac Pro 8-core 2.93GHz units and shipping Mac Pro 8-core 3.2GHz units. SPEC^® is a registered trademark of the Standard Performance Evaluation Corporation (SPEC); see www.spec.org for more information. Performance tests are conducted using specific computer systems and reflect the approximate performance of Mac Pro. ²1TB = 1 trillion bytes; actual formatted capacity less. ³Testing conducted by Apple in February 2009 using preproduction Mac Pro 8-core 2.93GHz units with NVIDIA GeForce GT 120 and ATI Radeon HD 4870; and shipping Mac Pro 8-core 3.2GHz units with ATI Radeon HD 2600 XT. Systems were configured with 6GB of RAM for Mac Pro 8-core 2.93GHz and 8GB of RAM for Mac Pro 8-core 3.2GHz. Performance tests are conducted using specific computer systems and reflect the approximate performance of Mac Pro.



TM and © 2009 Apple Inc. All rights reserved. Product specifications are subject to change without notice.
